ASUS 今年进一步扩大 BTF 元件生态圈,显示卡部分正式端出 NVIDIA GeForce RTX 高端、旗舰产品,现在让我们来瞧瞧 TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 是为 TUF Gaming GeForce RTX 4070 Ti Super White OC Edition 兄弟产品,目标市场主要锁定 2K 甚至是 4K 游戏玩家族群,关键差异在于电源输入改为 Advanced BTF 设计,能将背插式主板效益最大化。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
就当下的信息来看,ASUS只提供超频版、白色涂装单一选项,也就是这款TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition,推荐和银白色系风格TUF Gaming Z790-BTF WiFi主板搭配,至于ROG全餐除了走黑色风格路线,更也准备非超频的标准版本。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 设计配置
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
由于 TUF Gaming GeForce RTX 4070 / Ti / Super 产品设计相仿,我们先前也大多有介绍过,所以以下就简单快速带过。 TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 尺寸为 305 x 138 x 65mm,会占据约 3.25 个插槽空间,至于那长度的机壳兼容性算适中。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
所配备3颗双滚珠轴承轴向式风扇附加0dB停转功能,当显示芯片温度达到55°C才会转动,其余重点设计包含军规等级电容器、金属强化框架/背板、背板通风开口、双BIOS切换开关,以及低调不浮夸的TUF Gaming标志、Aura灯光效果等。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
TUF Gaming GeForce RTX 4070 Ti Super BTF 组成结构示意图。

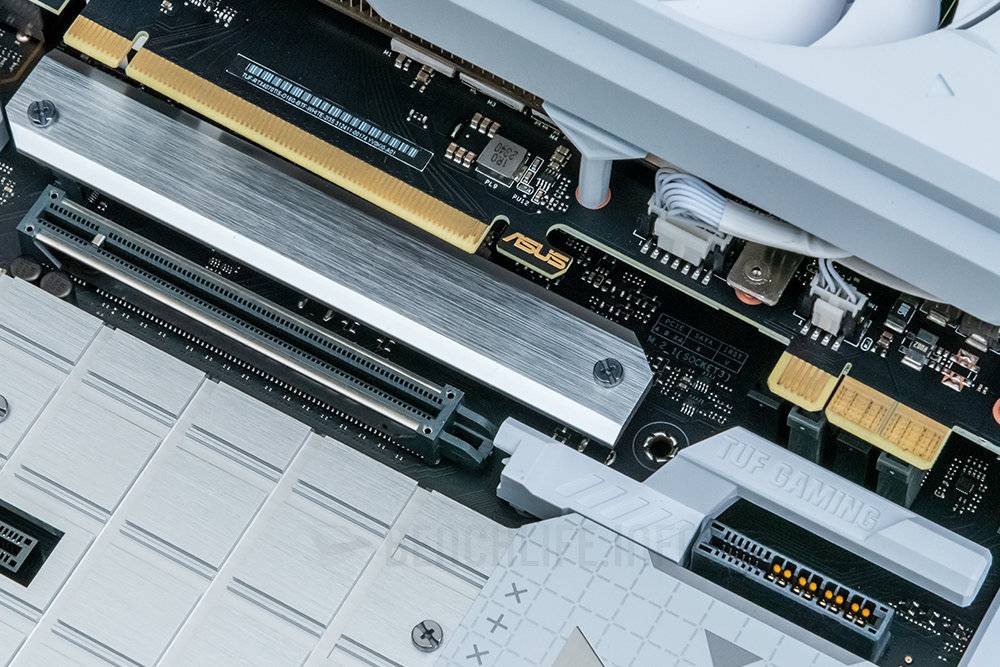

至于关键的Advanced BTF,其设计如同既有PCIe设计,ASUS另外加入一排GC_HPWR(HPCE)脚位构成背插式设计,它同样能够承受600W功率传输所需,然而显卡本身也拿掉既有的12VHPWR插座,Advanced BTF这个方案会是条单行道。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)

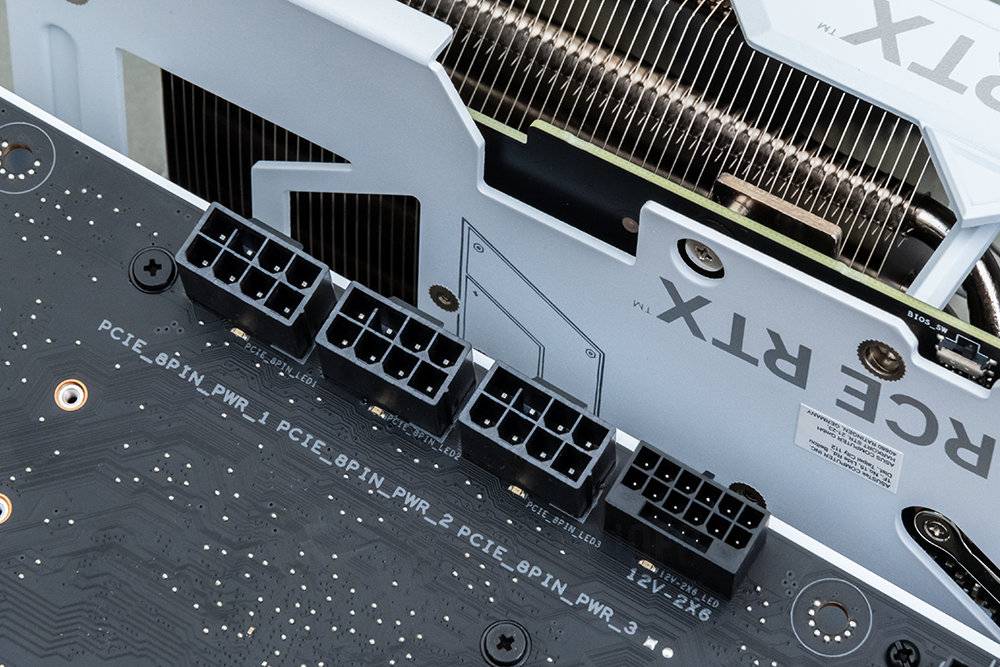

Advanced BTF 无论显示卡或主板,当前都只能和兼容产品搭配,不过以 TUF Gaming Z790-BTF WiFi 主板为例,它有 1 组 12V-2X6 和 3 组 PCIe 8pin 电源输入插座,允许自由选用因而保有变通弹性,让电源供应器未必需要跟着一并换新。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
其显示输出提供DisplayPort 1.4a和3组HDMI 2.1,对应支持8K @60Hz、4K @120Hz等分辨率,此处也使用相对耐脏污的304不锈钢材质背板。 至于附加软件层一切如故,GPU Tweak III 用于监控、调整配置,灯效则由 Armoury Crate 控制。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
TUF Gaming GeForce RTX 4070 Ti Super BTF 白色超频版
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 时脉设置略高于NVIDIA创始版,出厂预设基础2,340MHz、加速2,640MHz,在GPU Tweak III软件内切换至超频模式,会分别再提高至2,370MHz、2,670MHz。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
测试平台
- 处理器:Intel Core i9-14900K
- 内存:Kingston FURY Renegade DDR5-7200 RGB 32GB Kit(KF572C38RWAK2-32)
- 系統碟:Kingston KC3000 PCIe 4.0 NVMe M.2 SSD 1TB
- 散热器:Noctua NH-D15S
- 电源供应器:ASUS ROG Thor II 1000W
- 显示器:ASUS TUF Gaming VG28UQL1A
- 操作系统:Microsoft Windows 11 Pro 64bit 23H2
- 显示卡驱动程序:GeForce Game Ready – WHQL v551.52
性能实测阶段,通过GPU Tweak III将调整至超频模式(双BIOS开关默认Performance模式),所得结果如下列。 其中游戏部分,GeForce RTX 4070 Ti Super 性能得以提供极致的 2K 体验、作为 4K 入门选项,我们选择以 4K 来当代表范例组。
TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition | ||
---|---|---|
3DMark | ||
Speed Way | Score | 6507 |
Time Spy Extreme | Score | 14348 |
Graphics score | 12251 | |
CPU score | 12932 | |
Time Spy | Score | 24967 |
Graphics score | 25066 | |
CPU score | 24424 | |
Fire Strike Ultra | Score | 15191 |
Graphics score | 14660 | |
Physics score | 55134 | |
Combined socre | 8370 | |
Fire Strike Extreme | Score | 28072 |
Graphics score | 29173 | |
Physics score | 56367 | |
Combined socre | 13788 | |
Port Royal | Score | 16018 |
DirectX Raytracing feature test | Score | 73.97FPS |
NVIDIA DLSS feature test | DLSS off | 34.58FPS |
DLSS on | 132.91FPS | |
PCIe feature test | Score | 24.16GB/s |
TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition | |||
---|---|---|---|
遊戲:UHD / 4K 解析度、最高貼圖品質 | 平均幀率 | ||
Ashes of the Singularity: Escalation | 139 | ||
Assassin’s Creed Valhalla | 93 | ||
Borderlands 3 | 79.19 | ||
Call of Duty HQ | 86 | ||
Cyberpunk2077 | 56.38 | ||
DIRT 5 | 122 | ||
F1 23 (Japan 場景) | 90 | ||
Far Cry 6 | 102 | ||
For Honor | 138.16 | ||
Forza Horizon 5 | 115 | ||
Gears 5 | 92.8 | ||
Gears Tactics | 87.9 | ||
GRID Legends | 149.717 | ||
Immortals Fenyx Rising | 88 | ||
Marvel’s Guardians of the Galaxy | 127 | ||
Rainbow Six Extraction | 131 | ||
Rainbow Six Siege | 299 | ||
Shadow of the Tomb Raider | 117 | ||
Tom Clancy’s Ghost Recon Breakpoint (API:Vulkan) | 106 | ||
Tom Clancy’s The Division 2 (DX 12 on) | 100 | ||
Wolfenstein: Youngblood (X 實驗室 場景) | 194 | ||
Wolfenstein: Youngblood (河濱 場景) | 210 | ||
World War Z (API:Vulkan) | 164 |
散热性能在21°C左右的室温条件下进行,通过3DMark Speed Way Stress模式烧机获得98.8%评价,期间温度最高63.3°C、HotSpot 75.2°C、内存78°C,风扇转速1,54xRPM约等47%设计转速,解热效率与噪音量具有良好的平衡。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
TUF Gaming 系列显卡设计,在进入 GeForce RTX 30 世代的时候经过大改造,外观样式与质感、解热表现都普遍获得好评,TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 承袭这些元素,表现能力自然是无庸置疑。
![极致化背插式设计,ASUS TUF Gaming GeForce RTX 4070 Ti Super BTF White OC Edition 实测](https://www.gameducky.com/wp-content/themes/justnews/themer/assets/images/lazy.png)
